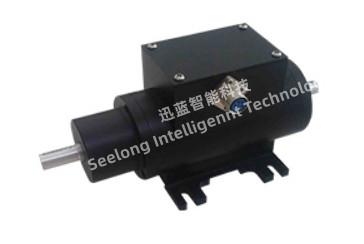

SLZN-200 Seelong Self-manufactured Shaft Torque Sensor 200N.M
0.2%FS For Transmission Test
Product description
Slzn-200 dynamic torque sensor is a non-contact high-speed rotation
sensor, also known as torque speed sensor, because of its high
measurement quality and low linear error, sensor has been in the
advantage of torque measurement products. The SLZN-200 torque
sensor adopts a non-contact design and is suitable for long time
rotational torque measurement and high speed rotational torque
measurement environments due to the absence of wearing parts. The
SLZN-200 torque sensor is a good choice for testing systems on
production lines or test stands or on test machines.
Product features
1. The power supply and signal transmission are non-contact.
2. No bearing, wide range of speed.
3. The connection with power shaft and load shaft is rigid
connection.
4. It is convenient to install and debug. The radial runout of the
user's shaft is less than 0.05mm, and the axial movement is less
than 0.5mm. The adjusting bolt at the bottom of the sensor can
easily adjust the installation clearance.
5. This model has two kinds of output with 485 bus and without 485
bus: standard type without 485 port; bus type with 485 port, USB
data line of computer and measurement software of upper computer.
6. This model of products are dynamic balance before delivery,
suitable for high speed.
Product characteristics
- Built in digital measurement signal conditioning unit, through
contactless transmission, the data is directly output in standard
analog or digital signal mode
- Strong anti-interference ability
- The rotor rotates in the stator ring, no mechanical bearing is
allowed, so there is no wear.
- 0.5 or 0.1 precision level, optional current, voltage or frequency
signal output
- High precision magnetoelectric angle / speed measuring unit, dust
and moisture proof
- Parameter identification, setting, measurement and zero balance of
sensor are realized through RS-485 interface
- Very small axial size compact flange flange connection design
- Digital non-contact signal transmission, no bearing, no
maintenance, system self-test function
Why choose us
After years of development and accumulation, the company has become
a well-known powertrain test equipment production enterprises.
Specializing in engine test, transmission test, energy storage
test, controls and electric motor test and other test equipment
research, development and production service. The company has
established long-term cooperation with tsinghua university,
Shandong university and many other domestic scientific
institutions. We have successfully passed the ISO9001 Quality
System certification, obtained a dozen of invention patents and two
software copyrights. We have provided professional services and
equipment for more than 100 users at home and abroad and which is
ongoing now and will continue in the future.
