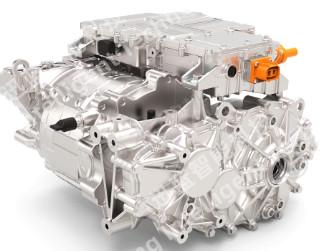

XLEM55 55kw 10000rpm 410Nm Three In One Electric Drive System New
Energy Vehicle Drive &electric drive system
Product description
The electric drive system includes a motor, a motor controller and
a transmission mechanism. Some electric cars can drive their wheels
directly from an electric motor Electric vehicle electric drive
mode can be basically divided into motor central drive and electric
wheel drive two. Pure electric vehicle (EV), as its name implies,
is a vehicle that simply relies on on-board power supply to provide driving force in line with vehicle power
requirements. Pure electric vehicles have no engine, and the
supplement of electric energy depends on external power supply. It
can be seen that the electric motor of a pure electric vehicle is
equivalent to the engine of a traditional car, and the battery is
equivalent to the original fuel tank. The composition of pure
electric vehicle is composed of three major parts: electric drive
main module, on-board power module and auxiliary module. Electric
drive and control system is the core of electric vehicles, which is
also the biggest difference from internal combustion engine cars.
Motor drive system is the heart of electric vehicles, which is
composed of motor, power converter, controller, various detection
sensors and power supply (battery).
Motor advantage
Highly integrated motor, reducer, controller three-in-one system
Flat wire motor with thinner silicon steel sheet to ensure higher
efficiency, system efficiency up to 94%
Motor shaft and reducer input shaft are on the same shaft,
improving system stiffness and better NVH performance
Oil-water mixed cooling technology is adopted to effectively
improve the sustainable performance of the system in the high-speed
zone
Meets ISO 26262 ASIL D functional safety level
Integrated emergency power supply, after the loss of low-voltage
12V power supply and high-voltage battery power failure, realize
the default parking, to ensure safety
Motor characteristic parameter
High efficiency permanent magnet synchronous motor
Rectangular card winding
Low groove torque and torque ripple
Low electromagnetic vibration and noise
Spin variable speed
Switching frequency conversion control
Oil - water compound cooling ensures excellent high - speed
sustained performance
Maximum RPM 16,000 RPM
The highest efficiency reached 97.5%
Controller characteristic parameter
Functional safety ASIL D
Software architecture AUTOSAR 4.2.2
CAN FD communication
Integrated network security, hardware security
Integrated motor control and parking control
Peak AC power (350V) 225kW
Peak phase current 650Arms
Continuous phase current 320Arms
High power density 33.1kW/L
The highest efficiency is 98.5%
Reducer characteristic parameters
Integrated design of input shaft
Two stage single speed high speed reducer
Double - sided shaping with low noise
Order noise below 80dB(A)
Jilt lubrication
No oil pump design low power consumption
Optional parking mechanism
The highest efficiency is 98.5%
