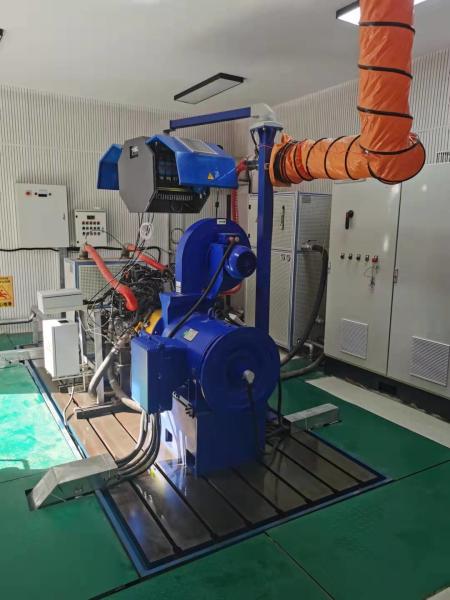

SSCG400-3000/7500 400Kw gas engine performance dynamometer test
stand
Product introduction
SSCG400-3000/7500
Ac electric dynamometer system is a special testing equipment for
engine bench performance test. The system uses AC dynamometer, frequency conversion control
technology, computer technology and test software to meet the test
requirements of bench test.
Test object
The main performance of the diesel engine
Main test items
- Idle speed test
- Load characteristics test SAIC
- Universal characteristic test
- Oil consumption test;
- Working uniformity test of each cylinder;
- Starting test at room temperature;
- Mechanical power loss test;
- Piston leakage test;
- Engine heat balance test;
- Reliability test (alternating load test, full speed load test, cold
and hot shock test)
Function
- Test parameters: speed, torque, power, exhaust temperature, oil
temperature, oil pressure, water outlet temperature, fuel
consumption rate, etc.
- To print the test time and the above test parameters in a table
type
- Parameter display mode: liquid crystal display
- Automatic control mode: constant position, constant speed, constant
torque
- Control mode switch: Undisturbed random dynamic switching
- Engine speed characteristic test, load characteristic test,
external characteristic test
- Digital set speed, torque value, digital PID automatic control
(example: through the instrument digital set torque 2700N.m,
dynamometer in 5 seconds automatically loaded to 2700N.m)
Basic Parameters(Customizable)
| Item | Technical parameters |
| Model | SSCG400-3000/7500 | |
| Rated power(KW) | 400 | |
| Constant power range(rpm) | 3000-7500 | |
| Max. speed(r/min) | 7500 | |
| Encoder | ROD436/1024 | |
| Torque range(Nm) | 0～2000 | |
| Over-load capacity | 120%(60s/10min) | |
| Cooling method | Air cooling | |
FAQ
Q:What’s the minimum order quantity for our cooperation?
A: We support small trail order of 1 pcs for stock products.
Q: How can I learn more about the products?
A: Please leave your email and we will send you your electronic
sample book.
Q: What’s your payment term?
A: Normally 30% T/T deposit, pay in full before shipment.
Q:What’s the lead time for my orders?
A: Dynamometers production cycle is 6-8 weeks, sensors prodction
cycle is 2-3 weeks, other products please contact with us.
Q: How do we get the overall solution of the test bench?
A: Leave us your email, our technical staff will communicate with
you about the detailed plan.
Q:Can I come to visit your factory?
A: Sure, you are always welcome to have a visit.
About Us
SeeLong Intelligent Technology (Luoyang Henan) Co., LTD., is a
professional production of automotive power system test equipment
high technology services enterprises. SeeLong is located in the
Peony City(famous for peonies) -- Luoyang, which is also the
ancient capital of 13 dynasties.
Why Choose Us
After years of development and accumulation, the company has become
a well-known powertrain test equipment production enterprises.
Specializing in engine test, transmission test, energy storage
test, controls and electric motor test and other test equipment
research, development and production service. The company has
established long-term cooperation with tsinghua university,
Shandong university and many other domestic scientific
institutions. We have successfully passed the ISO9001 Quality
System certification, obtained a dozen of invention patents and two
software copyrights. We have provided professional services and
equipment for more than 100 users at home and abroad and which is
ongoing now and will continue in the future.
Prospect of Cooperation
Friendly cooperation provides you both high quality products and
long-term professional after-sales service.
