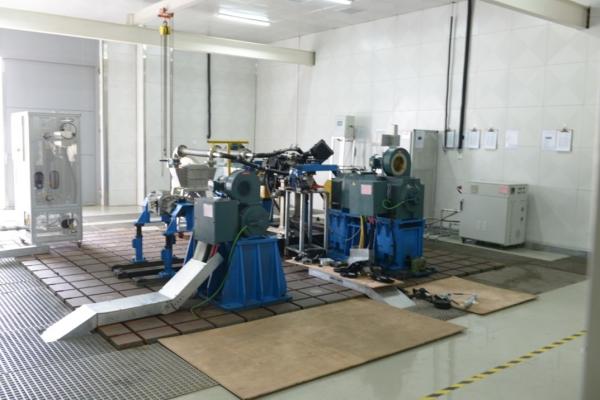

SSCG30-3000/10000 30Kw gas engine performance dyno test stand
Product introduction
SSCG30-3000/10000
Engine test system test bench is a special equipment used for
gasoline engine related tests. The dynamometer can switch between
torque mode and speed mode according to test requirements to meet
different test requirements. Man-machine interface using liquid crystal display display, can be
a variety of test data intuitively displayed, available keyboard
and mouse control operation.
Considering the requirements of test items and test process, we can
directly select the corresponding test items and set the
corresponding parameters to complete the test. The whole test bed has the characteristics of reasonable structure,
easy operation, high precision, stable and reliable system.
Test object
The main performance of the diesel engine
Main test items
- Idle speed test
- Load characteristics test SAIC
- Universal characteristic test
- Oil consumption test;
- Working uniformity test of each cylinder;
- Starting test at room temperature;
- Mechanical power loss test;
- Piston leakage test;
- Engine heat balance test;
- Reliability test (alternating load test, full speed load test, cold
and hot shock test)
Function
- Test parameters: speed, torque, power, exhaust temperature, oil
temperature, oil pressure, water outlet temperature, fuel
consumption rate, etc.
- To print the test time and the above test parameters in a table
type
- Parameter display mode: liquid crystal display
- Automatic control mode: constant position, constant speed, constant
torque
- Control mode switch: Undisturbed random dynamic switching
- Engine speed characteristic test, load characteristic test,
external characteristic test
- Digital set speed, torque value, digital PID automatic control
(example: through the instrument digital set torque 2700N.m,
dynamometer in 5 seconds automatically loaded to 2700N.m)
Basic Parameters(Customizable)
| Item | Technical parameters |
| Model | SSCG30-3000/10000 | |
| Rated power(KW) | 30 | |
| Constant power range(rpm) | 3000-10000 | |
| Max. speed(r/min) | 10000 | |
| Encoder | ROD436/1024 | |
| Torque range(Nm) | 0～100 | |
| Over-load capacity | 120%(60s/10min) | |
| Cooling method | Air cooling | |
FAQ
Q:What’s the minimum order quantity for our cooperation?
A: We support small trail order of 1 pcs for stock products.
Q: How can I learn more about the products?
A: Please leave your email and we will send you your electronic
sample book.
Q: What’s your payment term?
A: Normally 30% T/T deposit, pay in full before shipment.
Q:What’s the lead time for my orders?
A: Dynamometers production cycle is 6-8 weeks, sensors prodction
cycle is 2-3 weeks, other products please contact with us.
Q: How do we get the overall solution of the test bench?
A: Leave us your email, our technical staff will communicate with
you about the detailed plan.
Q:Can I come to visit your factory?
A: Sure, you are always welcome to have a visit.
