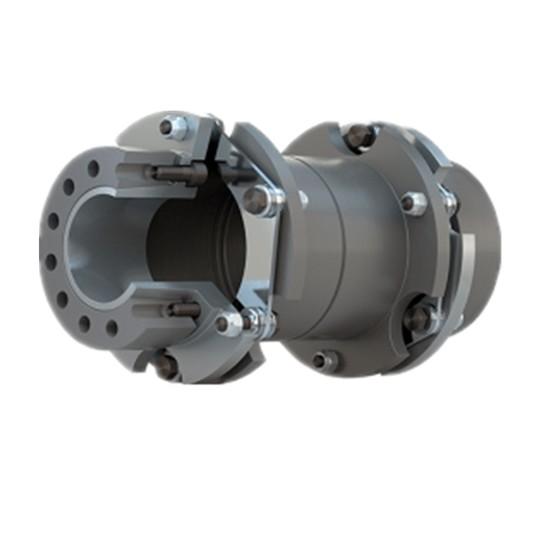

SLDS-MH 15000rpm 100--2000N'm' Metal Disc High Speed Motor Test
Drive Shaft
Drive Shaft Systems
Having delivered more than 1,000 drive shaft systems, SeeLong has
acquired extensive experience
in shaft dimensioning.
Drive shaft systems not only serve for the mechanical power
transfer between the test specimen and the dynamometer on
steady-state or dynamic testbeds, they also influence the vibration
behavior of the entire system.
Application
SeeLong drive shaft systems cover the whole range of operating
requirements for passenger car, commercial vehicle and racing
engines, Gearbox, Drive axle,motor. Different sizes, scopes and
specific characteristics of the test specimen or the test
application result in different standard drive shaft dimensions
suitable for:
- used in almost all industrial power trains
- Common torque range:30—10000Nm
- Permitted speed range:2500—15000rpm
Benefits at a Glance
- High performance density
- High torsional rigidity
- High accuracy and reliability
- Excellent silence performance
- High speed
- Durable and dynamic
- Provide diversified design
- 100% rated torque can be used, even in case of compensating
deviation and alternating load
- can be used even at 250 ℃
- Rated torque: 100-10000Nm
Technical Data
- Max. torque range : 10000Nm
- Max. speed :15000rpm
- Radial direction:0--2mm
- Axial direction: 0--2mm
Basic Parameters
| Type | Rated torque (Nm) | Max torque (Nm) | Max allowable speed (rpm) | Allowable axial offset (mm) | Allowable radial offset (mm) |
| SLSH-MH100 | 100 | 150 | 15000 | 0.8 | 0.15 |
| SLSH-MH200 | 200 | 300 | 15000 | 0.8 | 0.15 |
| SLSH-MH300 | 300 | 420 | 13600 | 0.8 | 0.15 |
| SLSH-MH400 | 400 | 600 | 11800 | 0.9 | 0.2 |
| SLSH-MH600 | 600 | 900 | 10100 | 1.1 | 0.25 |
| SLSH-MH900 | 900 | 1300 | 8500 | 1.3 | 0.3 |
| SLSH-MH1200 | 1200 | 1800 | 7300 | 1.5 | 0.3 |
| SLSH-MH1600 | 1600 | 2400 | 6200 | 1.7 | 0.35 |
| SLSH-MH2000 | 2000 | 3000 | 6000 | 1.9 | 0.4 |
