    250Nm10000 RPM Aluminum Alloy Car Engine Shaft

    Ask Lasest Price
    Brand Name : SeeLong
    Model Number : SCAC-C
    Certification : CMC
    Price : USD 150 dollar
    Payment Terms : T/T
    Supply Ability : 500 pcs per month
    Delivery Time : 1-2 weeks
    • Product Details
    • Company Profile

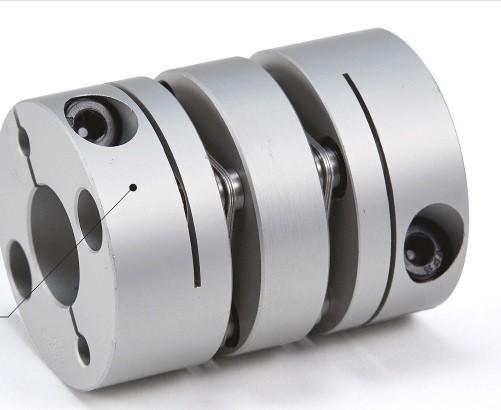

    250Nm10000 RPM Aluminum Alloy Car Engine Shaft

    10nm-250nm 10000 RPM Clamping Type Aluminum Alloy Diaphragm Couplingfor Motor Test


    Characteristic

    • Diaphragm type elastic coupling
    • Zero rotary clearance, high precision position control system
    • Low inertia, high sensitivity, high torque rigidity
    • The characteristics of clockwise and anticlockwise rotation are identical
    • Stainless steel diaphragm compensates radial, angular and axial deviations
    • Corrosion resistance
    • Clamping fixation mode

    Purpose

    • Servo motor, stepping motor, precision motor, etc
    • High speed and high precision control
    • Precision encoder
    • Transmission system in dust-free and vacuum environment
    • Acid base, temperature and humidity environment

    Texture of Material


    Axle sleeveHigh strength aluminum alloy
    Anodizing treatment
    IntermediateHigh strength aluminum alloy
    Anodizing treatment
    Diaphragmstainless steel
    ShimNickel plating on carbon steel
    Fixed diaphragm boltSCM435(grade12.9)
    Protective film of ferric oxide (black)
    Hexagon socket boltSCM435(12.9级)
    Protective film of ferric oxide (black)

    Technical Data


    • Max. torque range: 100Nm
    • Max. speed: 15000rpm
    • Radial direction: 0--0.5mm
    • Axial direction: 0--2mm

    Basic Parameters(Customizable)

    TypeRated torque(Nm)Max torque(Nm)Max allowable speed(rpm)Allowable radial deviation(mm)Allowable angularity deviation(°)

    Allowable axial deviation
    (mm)

    Weight(g)
    SCAC-C391015100000.2420.5118
    SCAC-C441218100000.2420.5150
    SCAC-C501522100000.2620.6222
    SCAC-C562537100000.2820.7307
    SCAC-C624060100000.3120.8431
    SCAC-C686090100000.3420.9499
    SCAC-C82100150100000.5221.11004
    SCAC-C94180270100000.5221.31400
    SCAC-C104250375100000.5521.51765

    FAQ


    Q:What’s the minimum order quantity for our cooperation?

    A: We support small trail order of 1 pcs for stock products.

    Q: How can I learn more about the products?

    A: Please leave your email and we will send you your electronic sample book.

    Q: What’s your payment term?

    A: Normally 30% T/T deposit, pay in full before shipment.

    Q:What’s the lead time for my orders?

    A: Dynamometers production cycle is 6-8 weeks, sensors prodction cycle is 2-3 weeks, other products please contact with us.

    Q: How do we get the overall solution of the test bench?

    A: Leave us your email, our technical staff will communicate with you about the detailed plan.

    Q:Can I come to visit your factory?

    A: Sure, you are always welcome to have a visit.
