SSCD 5-20KW 4000rpm 0.3%FS Suspended AC Dynamometer for Single
Cylinder Diesel Engine Test
SSCD Dynamometer for Single Cylinder Engine
In the test of single cylinder engine, because of the unbalanced
rotation, the torque measurement fluctuates greatly; therefore, the
torque of single cylinder engine cannot be directly measured by
torque meter. SSCD series dynamometer is specially developed for
single cylinder engine test.
The dynamometer adopts unique suspension structure, which can
effectively cushion the impact of single cylinder engine output on
torque meter, effectively avoid the impact of single cylinder
engine vibration on torque measurement, and ensure the stability
and reliability of measurement.

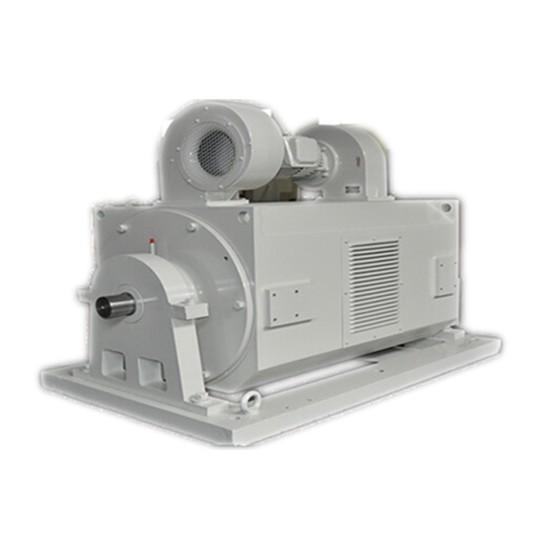

SSCD dynamometer consists of a suspended AC motor, tension pressure
sensor, force measuring device, speed sensor, mounting base and
flange connected with power machinery.
Working Principle
The alternating current generated by AC motor is converted into DC
power by ACS inverter, and then converted into AC network /
resistance consumption. ACS AC variable frequency speed regulation
system controls the speed and torque of prime mover by regulating
the grid current of motor.
When used with the control system, it can not only accurately
measure and control the speed and torque of various rotating power
machinery, but also measure and collect other signals such as
temperature and pressure.
Control System Selection
ACS series AC variable frequency speed regulation system with four
quadrant operation and AC power dynamometer measurement and control
instrument
Dynamometer Curve(5KW)
Technical Parameter
| Project | Parameters |
| Host model | sscd-5 / 4000 |
| Motor brand | Seelong |
| Rated power (kw) | 5 |
| Rated speed (RPM) | 1350 |
| Constant torque speed range (RPM) | 0-1350 |
| Constant power speed range (RPM) | 1350-4000 |
| Maximum speed (RPM) | 4000 |
| Rated torque (nm) | 35.3 |
| Torque measuring device | Seelong |
| Torque measurement range (nm) | 0-100 |
| Accuracy class | ± 0.3% FS |
| Encoder | P + F Germany |
| Encoder type | HTL / 1024 |
Specifications (Can be customized)
| Model | Power(KW) | Torque(Nm) | Rated Speed(rpm) | Max Speed(rpm) | Torque Measurement Accuracy |
| SSCD-5 | 5 | 35.4 | 1350 | 4000 | 0.3%FS |
| SSCD-10 | 10 | 70.7 | 1350 | 4000 | 0.3%FS |
| SSCD-15 | 15 | 106 | 1350 | 4000 | 0.3%FS |
| SSCD-20 | 20 | 142 | 1350 | 4000 | 0.3%FS |
