SSCG 110-250KW 8000rpm 0.3%FS Suspension Dynamometer for Gasoline Engine Test
SSCG Dynamometer for Gasoline Engine
AC dynamometer is the most advanced load Dynamometer on the market.
Especially in the small and medium power and small power power
power mechanical load dynamometer test, it can take into account
the low-speed and high-speed load dynamometer test of power
machinery. Compared with other types of dynamometer loading
equipment, AC dynamometer has obvious advantages in performance,
reliability, maintenance difficulty and so on.
Based on the original AC dynamometer, the suspension dynamometer uses the stator floating mechanism to make the dynamometer more
suitable for impact load.
SSCG dynamometer is a measuring device specially developed for
gasoline engine, aiming at power test of Car engine, motorcycle
engine and boat engine.
Control System Selection
ACS series AC variable frequency speed regulation system with four
quadrant operation and AC power dynamometer measurement and control
instrument.
SSCG dynamometer consists of a suspended motor, tension pressure
sensor, force measuring device, speed sensor,etc
Working Principle
The alternating current generated by AC motor is converted into DC
power by ACS inverter, and then converted into AC network /
resistance consumption. ACS AC variable frequency speed regulation
system controls the speed and torque of prime mover by regulating
the grid current of motor.
When used with the control system, it can not only accurately
measure and control the speed and torque of various rotating power
machinery, but also measure and collect other signals such as
temperature and pressure.
Examples for Possible Applications
- AC motor, motor suspension
- Modular design concept, suitable for various applications and
budget programs
- Low wear, low maintenance design
- Engine speed interface
- Engine torque interface

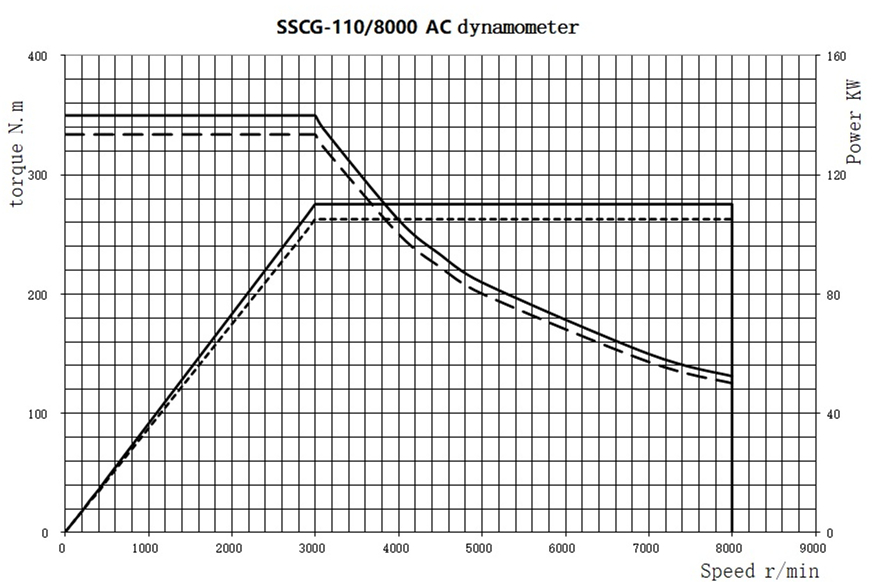

Curve(110KW)
Technical Parameter(110KW)
| Project | Parameters |
| Host model | SSCG-45/ 9000 |
| Motor brand | Seelong |
| Rated power (kw) | 110 |
| Rated speed (RPM) | 3000 |
| Constant torque speed range (RPM) | 0-3000 |
| Constant power speed range (RPM) | 3000-8000 |
| Maximum speed (RPM) | 8000 |
| Rated torque (nm) | 350 |
| Torque measuring device | Seelong |
| Torque measurement range (nm) | 0-500 |
| Accuracy class | ± 0.3% FS |
| Encoder | P + F Germany |
| Encoder type | HTL / 1024 |
Specifications (Can be customized)
| Model | Power(KW) | Torque(Nm) | Rated Speed(rpm) | Max Speed(rpm) | Torque Measurement Accuracy |
| SSCD60 | 60 | 424 | 1350 | 3800 | 0.3%FS |
| SSCD75 | 75 | 531 | 1350 | 3800 | 0.3%FS |
| SSCD90 | 90 | 637 | 1350 | 3800 | 0.3%FS |
| SSCD110 | 110 | 778 | 1350 | 3800 | 0.3%FS |
| SSCD132 | 132 | 934 | 1350 | 3800 | 0.3%FS |
| can be customized | | | | | |
FAQ
Q:What’s the minimum order quantity for our cooperation?
A: We support small trail order of 1 pcs for stock products.
Q: How can I learn more about the products?
A: Please leave your email and we will send you your electronic
sample book.
Q: What’s your payment term?
A: Normally 30% T/T deposit, pay in full before shipment.
Q:What’s the lead time for my orders?
A: Dynamometers production cycle is 6-8 weeks, sensors prodction
cycle is 2-3 weeks, other products please contact with us.
Q: How do we get the overall solution of the test bench?
A: Leave us your email, our technical staff will communicate with
you about the detailed plan.
Q:Can I come to visit your factory?
A: Sure, you are always welcome to have a visit.
