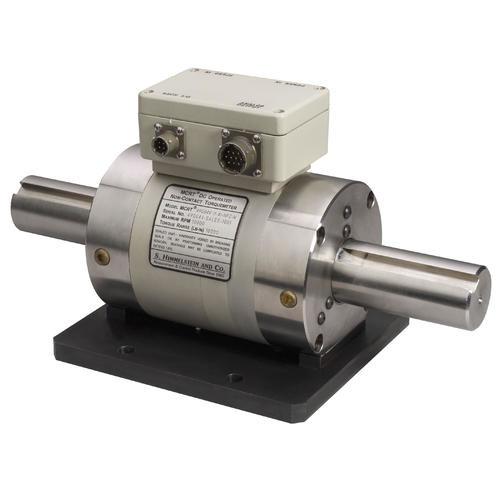

SLZN 500-1000Nm 8000rpm 0.2%FS High Speed Torque and Rotational
Speed Measurer
Product introduction
SLZN sensor is a general-purpose sensor, which is suitable for all
rotating power systems with sufficient distance between power
equipment and load. Meanwhile, power equipment and load are
relatively independent bodies, so coupling is required to install
the sensor between power equipment and load.
Technical parameters
- Power supply: ± 12VDC, current > 0.3A
- Application environment: temperature: - 20 ℃ - 50 ℃ Humidity: ≤ 90%
RH Atmospheric pressure: 90-106kpa
- Overload capacity: 150% F.S
- Inaccuracy: 0.1% F.S
- Repeatability: 0.1% F.S
- Linearity: 0.1% F.S
- Lag: 0.1% F.S
- Analog signal output: zero torque: 10kHz
- Forward full scale: 15KHz
- Reverse full scale: 5KHz
- Speed measuring gear: 60, 120, 600 or 1024 pulses per circle.
- Digital bus interface: RS232 or RS485
Function Description
- The performance and installation dimension of the product are fully
compatible with the corresponding sensors of SLZN series, and the
user does not need to change too much design to replace the
product.
- Data sampling time can be as fast as 1 ms, and can be set between
1-1000 MS as needed.
- Using advanced measurement algorithm, the measurement error of data
signal can be reduced to ± 1Hz.
- Through the digital bus interface signal, the measured value of
torque and speed is directly transmitted to the computer and other
network control equipment.
- The bus data communication has CRC data verification function, and
the reliability of data transmission is high.
- The measured parameters can be remotely modified by computer and
other control equipment, and the parameters can be completely saved
after power failure.
- It has a variety of intelligent functions, such as overload alarm,
fault detection, status indication, etc.
- Long distance data transmission can be realized through digital bus
interface.
- The function can be upgraded continuously without other hardware
cost.
Specifications (Can be customized)
| Model | Torque(Nm) | Max.Torque(Nm) | Rated Speed(rpm) | Speed Measurement Accuracy | Torque Measurement Accuracy |
| SLZN500 | 500 | 750 | 8000 | 1/60rpm | 0.2%FS |
| SLZN1000 | 1000 | 1500 | 8000 | 1/60rpm | 0.2%FS |
| Can be customized | | | | |
