SLYD 160-250KW 3300rpm ±0.05%FS High Dynamic and High Torque
Dynamometer
Introduction to SLYD Series Dyno

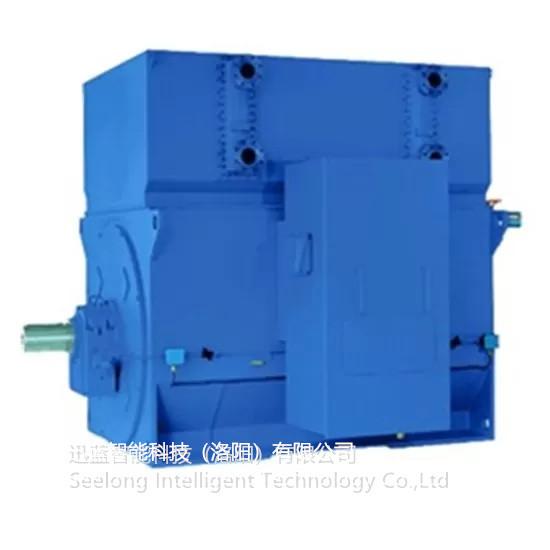

SLYD Electric dynamometer is different from eddy current
dynamometer. The SLYD electric dynamometer can be used to test
low-speed and high-torque engines, motors and transmissions. The
test system of power dynamometer is composed of variable frequency
motor, variable frequency controller, performance tester and test
software. It can test torque, speed, output power and efficiency.
It is suitable for various engine, aeroengine, gearbox, axle, AC /
DC motor, DC permanent magnet motor, induction motor, three-phase
asynchronous motor and synchronous motor It is widely used in
household appliances, aviation, automobile, electric vehicle and
other scientific research, production and testing industries.
Examples for Possible Applications
- AC motor
- Modular design concept, suitable for various applications and
budget programs
- Low wear, low maintenance design
- Engine speed interface
- Engine torque interface
Benefits at a Glance
- High sensitivity, good load torque stability, no electric brush
slip ring structure, long service life.
- Measurement accuracy: speed ± 0.1 R / min; torque ± 0.05% FS
- Loading stability: constant torque loading stability is better than
0.2%, constant speed driving is better than 0.1%
- Equipped with communication interface, it can communicate with the
computer in real time.
- At zero speed, the full load can be added
- high dynamic response speed, the dynamic response sis less than
5ms
Specifications (Can be customized)
| Model | Power(KW) | Torque(Nm) | Rated Speed(rpm) | Max Speed(rpm) | Torque Measurement Accuracy |
| SLYD160 | 160 | 1528 | 1000 | 3300 | 0.05%FS |
| SLYD200 | 200 | 1910 | 1000 | 3300 | 0.05%FS |
| SLYD250 | 250 | 2387 | 1000 | 3300 | 0.05%FS |
| Can be customized | | | | | |
FAQ
Q:What’s the minimum order quantity for our cooperation?
A: We support small trail order of 1 pcs for stock products.
Q: How can I learn more about the products?
A: Please leave your email and we will send you your electronic
sample book.
Q: What’s your payment term?
A: Normally 30% T/T deposit, pay in full before shipment.
Q:What’s the lead time for my orders?
A: Dynamometers production cycle is 6-8 weeks, sensors prodction
cycle is 2-3 weeks, other products please contact with us.
Q: How do we get the overall solution of the test bench?
A: Leave us your email, our technical staff will communicate with
you about the detailed plan.
Q:Can I come to visit your factory?
A: Sure, you are always welcome to have a visit.
About Us
SeeLong Intelligent Technology (Luoyang Henan) Co., LTD., is a
professional production of automotive power system test equipment
high technology services enterprises. SeeLong is located in the
Peony City(famous for peonies) -- Luoyang, which is also the
ancient capital of 13 dynasties.
Why Choose Us
After years of development and accumulation, the company has become
a well-known powertrain test equipment production enterprises.
Specializing in engine test, transmission test, energy storage
test, controls and electric motor test and other test equipment
research, development and production service. The company has
established long-term cooperation with tsinghua university,
Shandong university and many other domestic scientific
institutions. We have successfully passed the ISO9001 Quality
System certification, obtained a dozen of invention patents and two
software copyrights. We have provided professional services and
equipment for more than 100 users at home and abroad and which is
ongoing now and will continue in the future.
Prospect of Cooperation
Friendly cooperation provides you both high quality products and
long-term professional after-sales service.
