SSCH180-4000/15000 New Energy Motor Dynamometer Test Bench
SSCH180-4000/15000 New Energy Motor Dynamometer Test Bench
Description
In the field of new energy commercial vehicles and high-end
passenger vehicles, 180-kilowatt motors are becoming the mainstream
configuration of drive systems. The performance of these high-power
motors directly affects the vehicle's range and heavy-load
capacity. The 180-kilowatt new energy motor dynamometer test bench
is precisely designed as a "performance testing ground" for this
type of motor, ensuring stable operation of high-power motors in
complex application scenarios through full-condition simulation and
precise data collection.
The dynamometer test bench is designed with a core power range of
180 kilowatts, which can simulate extreme conditions such as
commercial vehicle climbing (slope ≥30%) and passenger vehicle
high-speed cruising (speed > 160km/h), and also has the ability
to test bidirectional energy flow. When the motor is in the power
generation state (such as when the vehicle brakes downhill), the
test bench can feed the regenerated electricity back to the grid
with an energy recovery rate of over 95%, reducing the energy
consumption cost of the test and realistically recreating the
vehicle energy management scenario.

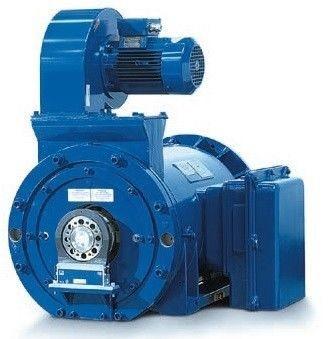

SSCH180-4000/15000 New Energy Motor Dynamometer Test Bench Components
1. 180kW AC asynchronous motor
•
180kW AC asynchronous motor, a maximum torque of 1200N · m
(@1500r/min), which is equipped with a high-precision torque sensor
(accuracy ± 0.1%FS), can load dynamic drag curves in real time to
simulate torque fluctuations when a heavy-duty truck climbs a slope
•
It is equipped with a three-level inverter with a switching
frequency of up to 10kHz, enabling smooth adjustment of the motor
speed within the range of 0-15000r/min
2. Bidirectional DC power supply system
•
Rated power: 200kW, voltage regulation range: 200-850V, supports
three control modes: constant voltage/constant current/constant
power
•
It is equipped with the built-in lithium battery simulation
algorithm, can reproduce the battery discharge characteristics
under different SOC states, such as the real working condition
where the internal resistance of the battery increases at low
temperatures (-30 ° C)
3. Complex cooling circulation system
•
The main loop uses ethylene glycol water solution for cooling, with
a flow control range of 5-50L/min and temperature control accuracy
±0.5 ° C
•
The dynamometer and the test motor are designed with separate
cooling circuits to avoid thermal coupling interference under high
temperature conditions
4. Intelligent measurement and control platform
•
The upper computer system developed based on Windows integrates
standard condition libraries such as the C-WTVC commercial vehicle
test cycle and the NEDC passenger vehicle test cycle
•
It can collect over 20 parameters such as torque, speed, voltage
and current in real time. The data sampling frequency reaches 10kHz
and it supports real-time communication with external devices via
CAN bus
SSCH180-4000/15000 New Energy Motor Dynamometer Test Bench Key
Technical Parameters
| System Module | Technical Specifications |
| Dynamometer | Rated power: 180kW; Maximum speed: 15000r/min; Peak torque: 1500Nm |
| DC power supply | Voltage range: 200-850V; Maximum current: 300A; Regulation accuracy: ±0.5% |
| Power analyzer | Voltage measurement accuracy: 0.05%FS; Current measurement accuracy: 0.02%FS; Power factor measurement range: -1 to +1 |
| Cooling system | Maximum cooling power: 30kW; Temperature control range: -10 ° C to 120 ° C; Flow control accuracy: ±1%
|
| Dynamic response | Torque step response time: < 5ms; Speed stabilization time: < 20ms |
SSCH180-4000/15000 New Energy Motor Dynamometer Test Bench
Technical Features
1. High dynamic load simulation capability
Through the real-time torque loading algorithm, the torque sudden
change scene of the vehicle at the starting stage (0-50km/h
acceleration) can be reproduced, and the torque fluctuation is
controlled within ±1.5%, meeting the dynamic performance test
requirements of the motor controller.
2. Wide temperature range environment simulation
With an optional environment chamber of -40 ° C to 120 ° C and
humidity control (20% to 95% RH), it can test the performance
degradation of the motor in extremely cold regions (such as winter
in Northeast China) and tropical high temperatures, with a
temperature rise test accuracy of ±1 ° C.
3. Fault Injection Test functionality
The system supports simulating more than 10 types of common faults
such as inter-turn short circuits of motors and sensor failures,
helping developers optimize fault-tolerant control strategies for
motors and improve the safety of on-board motor systems.
4. Intelligent data analysis platform
Built-in motor efficiency MAP generation tool, which can
automatically draw efficiency cloud maps for different speed -
torque intervals, supports benchmarking analysis with industry
benchmark motor data, and assists R&D teams in optimizing
design solutions.
SSCH180-4000/15000 New Energy Motor Dynamometer Test Bench Typical
Application Areas
1. Commercial vehicle drive motor testing
It is applicable to the performance verification of drive motors
for 8-12 meters pure electric buses and 4.5-18 tons logistics
vehicles, and can complete all tests such as rated power,
efficiency and overload capacity as stipulated in GB/T 18388-2021.
2. Research and development of high-end passenger car motors
Support motor system testing for four-wheel drive high-performance
electric vehicles (such as models that can accelerate from 0 to
100km/h in less than 3 seconds) and simulate motor thermal
management performance under conditions such as continuous rapid
acceleration and high-speed cruising.
3. Special vehicle power systems
Provide test solutions for low-speed high-torque motors of special
vehicles such as airport shuttle buses and port tractors, capable
of completing durability tests under heavy load conditions for more
than 10 hours.
4. Motor controller matching development
The parameter matching between the motor and the controller can be
optimized through the bench, such as optimizing vector control
parameters at 18000r/min high-speed conditions, which can increase
the motor efficiency in the high-speed zone by 3-5%, directly
enhancing the vehicle's high-speed range.
SSCH Series Models Parameter Information
| Model | Power (KW) | Torque (Nm) | Rated Speed (rpm) | Max Speed (rpm) | Torque Measurement Accuracy |
| SSCH30-4500/18000 | 30 | 64 | 4500 | 18000 | 0.2%FS |
| SSCH45-4500/18000 | 45 | 95 | 4500 | 18000 | 0.2%FS |
| SSCH60-4000/15000 | 60 | 143 | 4000 | 15000 | 0.2%FS |
| SSCH90-4000/15000 | 90 | 215 | 4000 | 15000 | 0.2%FS |
| SSCH110-4000/15000 | 110 | 263 | 4000 | 15000 | 0.2%FS |
| SSCH160-4000/15000 | 160 | 382 | 4000 | 15000 | 0.2%FS |
| SSCH200-4000/12000 | 200 | 477 | 4000 | 12000 | 0.2%FS |
| SSCH250-4000/12000 | 250 | 597 | 4000 | 12000 | 0.2%FS |
| SSCH300-4000/10000 | 300 | 716 | 4000 | 10000 | 0.2%FS |
| SSCH350-4000/10000 | 350 | 836 | 4000 | 10000 | 0.2%FS |
| SSCH400-4000/10000 | 400 | 955 | 4000 | 10000 | 0.2%FS |
| Can be customized |
Company Profile
Seelong Intelligent Technology (Luoyang) Co., Ltd. is a high-tech
enterprise specializing in equipment measurement, control, design,
manufacturing, and sales services for power engineering systems in
various fields such as aerospace, automotive, and new energy; The
company is located in the beautiful peony city of Luoyang.
Seelong specializes in the research and development, production,
and service of testing equipment for new energy motors, hybrid
power systems, engines, transmissions, and more. Our main products
include electric dynamometers, measurement and control systems, DC
power supplies, and working condition guarantee systems. Seelong
has a complete sales and service system, adhering to the business
philosophy of providing fine quality services for survival and
keeping on renovation for development, and providing users with
various types of power engineering measurement and control
solutions in various fields.
Seelong's advanced design philosophy and rich industry experience
give the company a technological Advantages ahead of competitors in
the same industry, and the company's products can better meet the
actual market demand. Seelong is brave in innovation. While valuing
its own technological breakthroughs and development, it has
established long-term and in-depth cooperative relationships with
multiple domestic research institutions such as Tsinghua University
and Shandong University. It has passed CE certification, ISO9001
quality system certification, AAA level enterprise certification,
obtained more than ten invention patents, and two software
copyrights. It has provided professional equipment and services to
more than a hundred users both domestically and internationally,
The enterprise has won the trust of domestic and foreign customers
with its cost-effective products and high-quality services, and has
established a long-term win-win strategic partnership.
The company always adheres to the business philosophy of "taking
technological innovation as its mission and quality service as its
purpose", constantly surpassing the advanced level in the same
industry, integrating into the world, measuring and controlling the
future, and creating high-quality products. To provide customers
with products and services with high intelligence, precision,
speed, reliability, and added value.
All employees of Seelong Intelligent Technology (Luoyang) Co., Ltd.
warmly welcome sincere cooperation from domestic and foreign
customers, and work together for the future and common development.

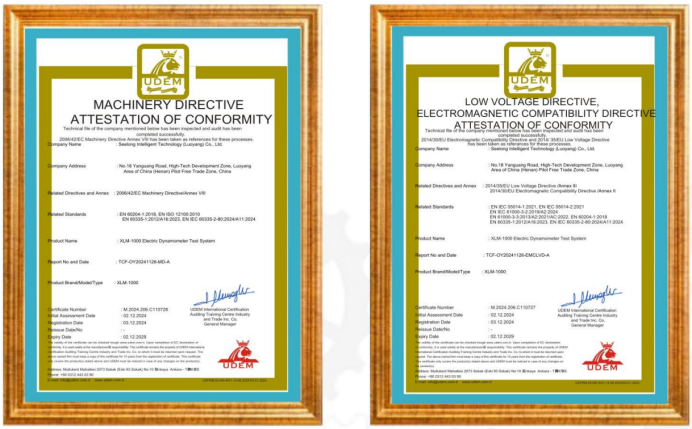

Company Certificates
