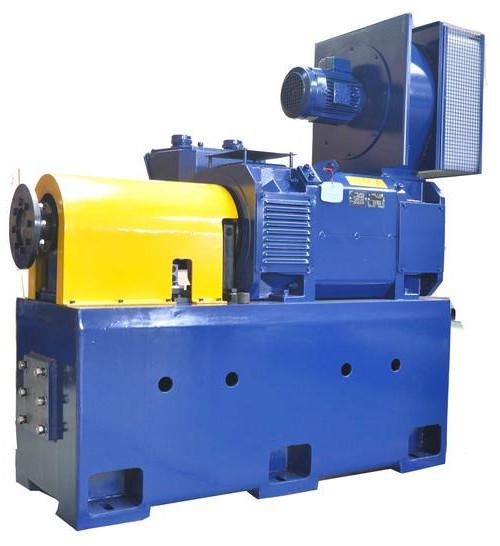

SSCG350-4000/8000 8000rpm 0.2%FS AC Dynamometer Used for High Speed Motor of Car
Applications
SSCG350 Series dynamometer is a special test equipment with high speed. The
main task is to apply the load to the motors,high speed engine. etc. The dynamometer also has the function of driving the test
piece.
Its main purpose is to test the performance of Vehicle motor,
turbine and High speed gearbox. These samples have the
characteristics of High speed output. SMHM realizes the accurate
control of speed and torque through the efficient inverter system,
and all test operations can be completed by computer control
commands. At the same time, the high-speed data communication
module makes the system have high real-time performance. SMHM
Series dynamometer has the characteristics of small volume, small
moment of inertia, low speed torque output and high dynamic
response.
Benefits at a Glance
- Fast return on investment thanks to highly effi cient energy
recovery
- Low installation coststhrough compact cabinet dimensions and
optimized mains requirements
- High reliability due to robust motors
- Best-in-class torque measurement accuracy and temperature stability
Technical Features (350KW)
- Torque flange range (nm): 0-1000
- Host model: SSCG350 - 4000/8000
- Motor brand: Seelong
- Rated power (kw): 350
- Rated speed (RPM): 8000
- Constant torque speed range (RPM): 0-4000
- Constant power speed range (RPM): 4000-8000
- Maximum speed (RPM): 8000
- Rated torque (nm): 682
- Torque measuring device: SEELONG
- Accuracy class: ± 0.2% FS
- Encoder: HBM, Germany
- Encoder type: HTL / 1024
Specifications (Can be customized)
| Model | Power (kW) | Torque (Nm) | Rated Speed (rpm) | Max Speed (rpm) | Torque Measurement Accuracy |
| SSCG200-4000/10000 | 200 | 637 | 4000 | 10000 | 0.2%FS |
| SSCG250-4000/10000 | 250 | 796 | 4000 | 10000 | 0.2%FS |
| SSCG300-4000/9000 | 300 | 955 | 4000 | 10000 | 0.2%FS |
| SSCG350-4000/9000 | 350 | 1114 | 4000 | 10000 | 0.2%FS |
| Can be customized |
FAQ
Q:What’s the minimum order quantity for our cooperation?
A: We support small trail order of 1 pcs for stock products.
Q: How can I learn more about the products?
A: Please leave your email and we will send you your electronic
sample book.
Q: What’s your payment term?
A: Normally 30% T/T deposit, pay in full before shipment.
Q:What’s the lead time for my orders?
A: Dynamometers production cycle is 6-8 weeks, sensors prodction
cycle is 2-3 weeks, other products please contact with us.
Q: How do we get the overall solution of the test bench?
A: Leave us your email, our technical staff will communicate with
you about the detailed plan.
Q:Can I come to visit your factory?
A: Sure, you are always welcomed to have a visit.
About Us
SeeLong Intelligent Technology (Luoyang Henan) Co., LTD., is a
professional production of automotive power system tes
t equipment high technology services enterprises. SeeLong is
located in the Peony City(famous for peonies) -- Luoyang, which is
also the ancient capital of 13 dynasties.
Why Choose Us
After years of development and accumulation, the company has become
a well-known powertrain test equipment production enterprises.
Specializing in engine test, transmission test, energy storage
test, controls and electric motor test and other test equipment
research, development and production service. The company has
established long-term cooperation with tsinghua university,
Shandong university and many other domestic scientific
institutions. We have successfully passed the ISO9001 Quality
System certification, obtained a dozen of invention patents and two
software copyrights. We have provided professional services and
equipment for more than 100 users at home and abroad and which is
ongoing now and will continue in the future.
Prospect of Cooperation
Friendly cooperation provides you both high quality products and
long-term professional after-sales service.
