SLZN - 5000 Axis Dynamic Torque Sensor 5000N.m 0.5%FS High Speed
Torque and Rotational Speed Measurer
Product introduction
SLZN series torque and speed sensor is a new generation sensor
carefully designed by our company, with independent intellectual
property rights. The product adopts the field bus design technology
and advanced and practical equipment networking function, which can
make the product suitable for a wider range of industrial sites,
and make a number of torque detection quickly and conveniently
realized in various industrial control and measurement systems. It
is an integrated product which is based on the resistance strain as
the sensing element and integrated circuit.
Application
1.Testing the output torque and power of motor, engine, internal
combustion engine and other rotating power equipment
2.Test the torque and power of fan, water pump, gear box and
torsion plate
3.Railway locomotives, automobiles, tractors, aircraft, ships,
mining machinery torque and power testing
4.Can be used in the sewage treatment system torque and power
detection;
5.Can be used in the manufacture of viscometers
6.Can be used in process industry and process industry
7.Can be used in laboratories, testing departments and production
monitoring and quality control
Technical parameters
| Item | Parameters |
| Model | SLZN |
| Torque range | 0±5000N.m(optional) |
| Torque output | 5-15KHZ,0±10V,0±5V,0-10V,4-20mA |
| Speed output | 60 pulse/r,4-20mA |
| Speed range | 0-5000 r/min |
| Measurement accuracy | 0.5% |
| Response frequency | 500μs |
| Supply voltage | 24VDC |
| Overload capacity | 150% |
| Zero drift | ＜0.5% |
| Environmental temperature | -40℃-80℃ |
| Relative humidity | ＜90%RH |
| Work amplitude | 10V |
| Surface treatment | Anodic treatment |
| Sensor material | alloy steel/stainless steel/aluminum |
| Sensor power consumption | 4W |
Main Features
●Both static torque and dynamic torque can be measured.
●Can measure forward and reverse torque, speed and power.
●No necessary to adjust zero point when measuring forward and
reverse torque.
●Torque measurement accuracy is independent of rotation speed and
direction.
●Signal using digital technology, strong anti-jamming.
●Input power polarity, output torque, speed signal protection.
●There is no wear parts such as collector ring, so it can run at
high speed for a long time.
●High precision and good stability.
●Signal output can be arbitrary choice of waveform - square wave or
pulse wave.
●Small size, the sensor can be used independently from the
secondary instrument, as long as the socket pin number is provided
24VDC (200mA) power supply, can output equal square wave impedance
proportional to the torque or pulse impulse wave frequency
signal.Light weight and easy to install.
●High reliability and long service life.
●It can be installed in any position and in any direction.

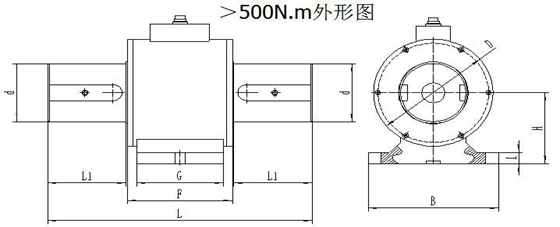

Outside view
FAQ
Q:What’s the minimum order quantity for our cooperation?
A: We support small trail order of 1 pcs for stock products.
Q: How can I learn more about the products?
A: Please leave your email and we will send you your electronic
sample book.
Q: What’s your payment term?
A: Normally 30% T/T deposit, pay in full before shipment.
Q:What’s the lead time for my orders?
A: Dynamometers production cycle is 6-8 weeks, sensors prodction
cycle is 2-3 weeks, other products please contact with us.
Q: How do we get the overall solution of the test bench?
A: Leave us your email, our technical staff will communicate with
you about the detailed plan.
Q:Can I come to visit your factory?
A: Sure, you are always welcome to have a visit.
