    CMC 200Nm Dynamic Torque Meter Motor Engine Gearbox Test

    Ask Lasest Price
    Brand Name : SeeLong
    Model Number : SLZN-200
    Certification : CMC
    Price : USD 2105 dollar
    Payment Terms : T/T
    Supply Ability : 20 pcs per month
    Delivery Time : 10-15days
    • Product Details
    • Company Profile

    CMC 200Nm Dynamic Torque Meter Motor Engine Gearbox Test

    SLZN - 200 Axis Dynamic Torque Sensor 200N.m 0.2%FS High Speed Torque and Rotational Speed Measurer
    SLZN Axis Dynamic Torque Sensor 200Nm 0.2%FS Motor Engine Gearbox Test

    Product introduction

    This Component Finder will make it easier for you to search for generic torque sensors that can be used for general measurements in research and development or in test laboratories. As well as generic torque sensors, SeeLong offers a vast range of customized solutions for torque measurement in specific applications.


    Technical parameters

    ItemParameters
    ModelSLZN
    Torque range0±200N.m(optional)
    Torque output5-15KHZ,0±10V,0±5V,0-10V,4-20mA
    Speed output60 pulse/r,4-20mA
    Speed range0-20000 rpm/min
    Measurement accuracy0.2%
    Relative humidity<90%RH
    Work amplitude10V
    Surface treatmentAnodic treatment
    Sensor materialalloy steel/stainless steel/aluminum
    Sensor power consumption4W


    Main Features
    ●Both static torque and dynamic torque can be measured.
    ●Can measure forward and reverse torque, speed and power.
    ●Torque measurement accuracy is independent of rotation speed and direction.
    ●Signal using digital technology, strong anti-jamming.
    ●High precision.

    Good stability.
    ●Signal output can be arbitrary choice of waveform - square wave or pulse wave.

    ●High reliability and long service life.
    ●It can be installed in any position and in any direction.



    Function Description

    • Using advanced measurement algorithm, the measurement error of data signal can be reduced to ± 1Hz.
    • Through the digital bus interface signal, the measured value of torque and speed is directly transmitted to the computer and other network control equipment.
    • The bus data communication has CRC data verification function, and the reliability of data transmission is high.
    • The measured parameters can be remotely modified by computer and other control equipment, and the parameters can be completely saved after power failure.
    • It has a variety of intelligent functions, such as overload alarm, fault detection, status indication, etc.
    • Long distance data transmission can be realized through digital bus interface.
    • The function can be upgraded continuously without other hardware cost.

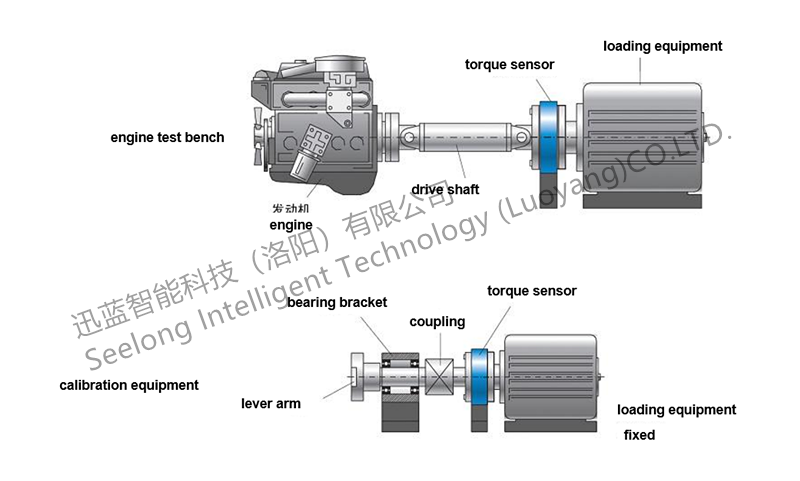

    Outside view




    FAQ

    Q:What’s the minimum order quantity for our cooperation?
    A: We support small trail order of 1 pcs for stock products.
    Q: How can I learn more about the products?
    A: Please leave your email and we will send you your electronic sample book.
    Q: What’s your payment term?
    A: Normally 30% T/T deposit, pay in full before shipment.
    Q:What’s the lead time for my orders?
    A: Dynamometers production cycle is 6-8 weeks, sensors prodction cycle is 2-3 weeks, other products please contact with us.
    Q: How do we get the overall solution of the test bench?
    A: Leave us your email, our technical staff will communicate with you about the detailed plan.
    Q:Can I come to visit your factory?
    A: Sure, you are always welcome to have a visit.
