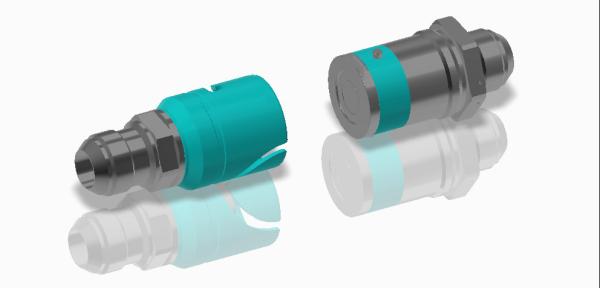

TFA Series Bayonet Fluid Connector
TFA series bayonet fluid connector adopts bayonet locking, which
can realize the locking and disconnecting of plug and socket by
pushing and pulling rotation, easy to operate, safe and reliable.
It is suitable for the quick connection between industrial equipment, rail transit, new energy vehicle pipelines, and the liquid cooling and heat
dissipation rapid connection system in the fields of data center,
supercomputer, military defense, aerospace and so on.
TFA Series Bayonet Fluid Connector Advantages
- Bayonet locking structure is simple to operate, having a stable and reliable connection, suitable for vibration environment.
- Two-way shut-off valve design, it can keep sealed in both connected and disconnected state, no leakage,
safe and reliable.
- Axial docking, linear flow, so that the pressure drop is reduced,
with an excellent flow/pressure drop ratio.
- The substrate material and the surface coating have strong wear
resistance and corrosion resistance.
- The flat anti-contamination design minimizes the entry of
contaminants into the piping system.
- The flat no-drip design ensures operator safety and prevents liquid
leakage from causing environmental pollution.
- According to the flow parameters, 7 kinds of diameter size can be selected.
- According to the pipe temperature, 4 color identification fluid
connectors can be provided to help quickly identify the loops with different temperature.
- Fluid connectors can be installed to pipelines and equipment in a variety of ways, if you need to customize
the tail interface, please contact our company.
- When the equipment needs overvoltage protection, please choose TFAR automatic pressure relief bayonet socket.
TFA Series Bayonet Fluid Connector Technical Parameters
| Substrate material | Stainless steel, aluminum alloy, brass |
| Seal material | Nitrile rubber, EPDM, fluororubber, silicone rubber |
| Applicable medium | Water, coolant, oil, etc |
| Operating temperature | -45℃ - 200℃ |
| Operating pressure | 0 - 15bar |
| Salt spray test | ≥120h |
| Vibration test | According to GJB360B-2009 method, withstand 1Mpa pressure vibration
without leakage |
| Impact test | According to GJB360B-2009 method, withstand 1Mpa pressure impact
without leakage |
| Mechanical life | 10000 insertions without leakage |
TFA Series Plug/Socket Parameters
| Model Specifications | TFA03 | TFA05 | TFA08 | TFA10 | TFA12 | TFA16 | TFA20 |
| Equivalent diameter (mm) | 3 | 5 | 8 | 10 | 12 | 16 | 20 |
| Maximum operating pressure (bar) | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Maximum working flow (L/min) | 2 | 5.8 | 14.9 | 23.2 | 33.5 | 59.5 | 93 |
| Flow coefficient (m³/h) | 0.22 | 0.79 | 1.93 | 3.57 | 5.41 | 6.67 | 8.6 |
| Maximum leakage per insertion (mL) | 0.005 | 0.02 | 0.03 | 0.05 | 0.06 | 0.08 | 0.1 |
| Shut-off valve | two-way | two-way | two-way | two-way | two-way | two-way | two-way |
| Insertion force (N) | 75 | 10 | 110 | 130 | 140 | 180 | 200 |
TFA Series Plug/Socket Flow Curve
TFA Series Bayonet Fluid Connector Application
1) Energy Storage Industry
Energy storage technology is the core of the new energy industrial
revolution. To a large extent, energy storage technology solves the
randomness and volatility of new energy power generation, can
achieve smooth output of new energy power generation, and can
effectively adjust the changes in grid voltage, frequency and phase
caused by new energy power generation, so that large-scale wind
power and photovoltaic power generation can be easily and reliably
incorporated into the conventional power grid. New energy vehicles,
especially electric vehicles, are also promoting the development of
battery energy storage industry.
At present, the energy storage temperature control system mainly uses air cooling and liquid cooling. Among them, air-cooled heat
dissipation brings the heat generated by the battery cell to the outside by the fan, which has the advantages of simple structure and low cost, but
the heat transfer coefficient is low, the cooling speed is slow,
and a large area of heat dissipation channel is required; The liquid cooling heat dissipation is to reduce the temperature of
the battery by convection heat transfer of the coolant, its advantages are mainly close to the heat source, low energy
consumption, high thermal conductivity, more uniform heat
dissipation, but also more suitable for outdoor environment than
air cooling.
The efficient operation of energy storage equipment cannot be
separated from the guarantee of temperature control system. With
the rapid increase of energy storage density, efficient liquid
cooling system has become an important direction for the
development of temperature control. The performance of the fluid
connector developed by our company is safe and reliable, and the operation is easy and fast. The plug and socket is a two-way shut-off valve, and the flat no-drip design ensures that the plug and socket can be kept sealed in the connection and disconnection
state, ensuring the safety of the operator and preventing liquid
leakage causing environmental pollution.
2) Aerospace Industry
The Aerospace industry, especially the normal operation of radar and aircraft, is
inseparable from the temperature control system. Our company
specializes in the development of fluid connectors for Aeronautic Defence systems, with its safe and reliable performance, convenient and
quick operation, provides lasting and reliable guarantee for the
temperature control system of airborne equipment.
3) Data Processing
Some large data centers, server stations and supercomputers, carrying out hundreds of millions of instruction operations every second, will produce a lot of heat, data processing equipment
heat dissipation performance is directly related to the computer
computing speed and life. Our company specializes in the development of fluid connectors for
data processing equipment, with its safe and reliable performance,
convenient and quick operation, provides lasting and reliable guarantee for the cooling system of the
computer.
Company Profile
Seelong Intelligent Technology (Luoyang) Co., Ltd. is a high-tech
enterprise specializing in equipment measurement, control, design,
manufacturing and sales of power engineering systems in various
fields such as aerospace, automobiles, and new energy. The company
is located in the beautiful Peony Flower City - Luoyang, the
capital of God.
The main products are AC dynamometer, quick connect coupling,
torque sensor, measurement and control system and condition
guarantee system and other products. Establish a complete sales
service system, adhering to the business philosophy of quality for
survival and service for development, to provide users with power
engineering measurement and control solutions in various fields.
Seelong's advanced design philosophy and rich industry experience
give the company a technological Advantages ahead of competitors in
the same industry, and the company's products can better meet the
actual market demand. After years of development and accumulation, the company has become
a well-known powertrain test equipment production enterprises.
Seelong has passed CE certification, ISO9001 quality system
certification, AAA level enterprise certification, obtained more
than ten invention patents, and two software copyrights. It has
provided professional equipment and services to more than a hundred
users both domestically and internationally, The enterprise has won
the trust of domestic and foreign customers with its cost-effective
products and high-quality services, and has established a long-term
win-win strategic partnership.
All employees of Seelong Intelligent Technology (Luoyang) Co., Ltd.
warmly welcome sincere cooperation from domestic and foreign
customers, and work together for the future and common development.
