SSCG132-3000-9000 132kW Gasoline Engine Electric Dynamometer Test
Bench System
1. SSCG132-3000-9000 132kW Gasoline Engine Electric Dynamometer Test Bench System
Overview
As high-performance power testing equipment, the 132kW gasoline
engine electric dynamometer test bench system utilizes advanced
energy feedback technology to simulate complex and variable
real-world operating conditions, enabling precise testing and
evaluation of gasoline engine performance. By efficiently
converting the engine's mechanical energy into electrical energy
and feeding it back to the grid, this dynamometer test bench system
not only achieves energy recycling but also accurately measures key
engine performance indicators such as power, torque, and speed
under varying loads, providing reliable data for engine R&D,
production, and quality testing.
Factory conditions for equipment installation
| Parameter | Value | Parameter | Value |
| Altitude | Less than 1000 meters | Factory humidity | ≤80% |
| Foundation thickness | ＞180mm | Factory temperature | 5°C～40°C |
| Factory floor bearing capacity | 3t/㎡ | Power supply | 380V± 10 % three-phase 50Hz |
2. SSCG132-3000-9000 132kW Gasoline Engine Electric Dynamometer Test
Bench System Reference Standards
1). GB/T 18297-2024 “Performance test code for road vehicle engines”, serves as a foundational standard, detailing the test procedures
and data processing methods for engine power, torque, fuel
consumption, and other performance parameters.
2). GB/T 19055-2024 "Reliability test methods for motor vehicle engines", a key standard in the field of reliability testing,
systematically defines test condition settings, operating procedure
specifications, and performance evaluation criteria for engine
reliability testing.
3. SSCG132-3000-9000 132kW Gasoline Engine Electric Dynamometer Test
Bench System Components
The 132kW gasoline engine electric dynamometer test bench system
consists of the following components:
1) Electric dynamometer: It consists of an AC motor, a mounting bracket, and a German HBM
T40B series torque flange. It can accurately complete torque
measurement and realize loading and dragging operations.
2) ABB ACS880 variable frequency inverter system: Controls the electric dynamometer, and can directly feed the
generated electrical energy into the power grid, combining
efficient control and energy saving features.

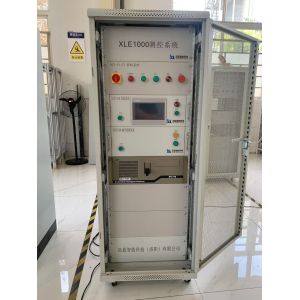

3) XLE-1000 measurement and control system and software: Carries out the overall control of the test bench, communicates
with the frequency conversion system via the bus to set and control
operating conditions, integrates external auxiliary equipment for
centralized management and control, receives and collects
parameters, and completes the test process automatically,
efficiently and conveniently.
4) Data acquisition system: Equipped with suitable temperature and pressure sensors and
acquisition components, it comprehensively collects parameters of
various parts of the engine and uploads them to the measurement and
control system through the interface to realize data display,
recording and analysis processing, with accurate collection and
efficient processing.
5) Motor-type throttle actuator: Adjust various throttle openings, with strong torque, fast
response, and excellent dynamic performance, specially designed for
various dynamic tests of engines.
6) Transient fuel consumption meter and fuel boost and pressure
regulating device: The transient fuel consumption meter accurately measures the fuel
consumption of diesel and alternative fuel engines; the fuel boost
and pressure regulating device ensures a stable fuel pressure
supply and guarantees stable engine operation.
7) Coolant temperature control device: Precisely controls engine coolant temperature with fast response
and high control accuracy.
e;
4. 132kW Gasoline Engine Electric Dynamometer Technical Parameters
| Parameter Category | Technical Indicators |
| Rated power | 132kW |
| Rated torque | 420Nm |
| Constant torque measurement range | 0-3000rpm |
| Constant speed measurement range | 3000-9000rpm |
| Torque measurement range | 0-420Nm |
| Torque measurement accuracy | ±0.15%FS |
| Dynamic response time | ≤80ms |
| Energy feedback efficiency | ≥97% |
| Operating voltage | AC 380V±10% |
| Frequency | 50Hz |
5. SSCG132-3000-9000 132kW Gasoline Engine Electric Dynamometer Test
Bench System Core Advantages
1) High compatibility: The measurement and control system is highly open and can
seamlessly connect with engine controllers and user-owned devices
without the need for additional modifications, thereby improving
equipment utilization.
2) Fully automatic testing: Through the preset program of the measurement and control system,
the throttle, load and other parameters are automatically adjusted
to complete the working condition simulation, reduce manual
intervention and improve test efficiency.
6. Gasoline Engine Electric Dynamometer Test Bench System Model
List
| Model | Power (KW) | Torque (Nm) | Rated Speed (rpm) | Max Speed (rpm) | Torque Measurement Accuracy |
| SSCG30-3000/10000 | 30 | 95 | 3000 | 10000 | 0.2%FS |
| SSCG45-3000/10000 | 45 | 143 | 3000 | 10000 | 0.2%FS |
| SSCG60-3000/10000 | 60 | 191 | 3000 | 10000 | 0.2%FS |
| SSCG90-3000/10000 | 90 | 286 | 3000 | 10000 | 0.2%FS |
| SSCG110-3000/10000 | 110 | 350 | 3000 | 10000 | 0.2%FS |
| SSCG160-3000/10000 | 160 | 509 | 3000 | 10000 | 0.2%FS |
| SSCG200-3000/8000 | 200 | 637 | 3000 | 8000 | 0.2%FS |
| SSCG250-3000/8000 | 250 | 796 | 3000 | 8000 | 0.2%FS |
| SSCG300-3000/7500 | 300 | 955 | 3000 | 7500 | 0.2%FS |
| SSCG350-3000/7500 | 350 | 1114 | 3000 | 7500 | 0.2%FS |
| SSCG400-3000/7500 | 400 | 1273 | 3000 | 7500 | 0.2%FS |
| Can be customized |
7. SSCG132-3000-9000 132kW Gasoline Engine Electric Dynamometer Test
Bench System Application Areas
(1) Research and development of high-performance automobile engines
Simulate high-speed and high-load operating conditions to test
engine power, fuel consumption and emissions, optimize combustion
and other systems, and improve overall performance.
(2) Aviation ground support equipment power test
Test the engine performance of aviation ground power vehicles and
other equipment to ensure their reliable operation in harsh
environments.
(3) Development of special vehicle power systems
Simulate complex terrain and harsh weather conditions, evaluate
engine performance, optimize calibration parameters, and meet
special needs.
(4) Performance testing of small power generation equipment
Simulate different load operating conditions, test engine power,
frequency, and voltage regulation accuracy, and ensure power
generation quality.
8. Trade Show
From October 24th to 26th, 2024, the Russian International Testing
and Control Exhibition was successfully held at the Moscow Klokus
International Convention and Exhibition Center. The exhibition is
hosted by the well-known Russian exhibition company MVK and is an
annual international professional exhibition on testing and
control.
As the largest and most influential testing and control equipment
exhibition in Russia, it has received strong support from official
institutions such as the Russian Federation Ministry of Defense,
Ministry of Industry and Trade, State Duma Defense Committee,
Federal Technical Regulations and Metrology Bureau, and State
Economic Development Bureau. A total of 10,237 visitors were
received during the exhibition.
Seelong Intelligent Technology (Luoyang) Co., Ltd. was invited to
participate in the exhibition, focusing on displaying its main
products such as engine test benches and transmission test benches
to the Russian market. As the only supplier of power system testing
equipment in China, Seelong became one of the focuses of this
exhibition, attracting professional visitors from many fields such
as aviation, automobile, agricultural machinery and power
generation equipment to come for communication and negotiation.
This participation not only enhanced the brand awareness of Seelong
Intelligent in the Russian market, but also built an efficient
communication platform for it to establish close cooperative
relations with Russian partners and customers.
Company Profile
Seelong Intelligent Technology (Luoyang) Co., Ltd. is a high-tech
enterprise specializing in equipment measurement, control, design,
manufacturing, and sales services for power engineering systems in
various fields such as aerospace, automotive, and new energy; The
company is located in the beautiful peony city of Luoyang.
Seelong specializes in the research and development, production,
and service of testing equipment for new energy motors, hybrid
power systems, engines, transmissions, and more. Our main products
include electric dynamometers, measurement and control systems, DC
power supplies, and working condition guarantee systems. Seelong
has a complete sales and service system, adhering to the business
philosophy of providing fine quality services for survival and
keeping on renovation for development, and providing users with
various types of power engineering measurement and control
solutions in various fields.
Seelong's advanced design philosophy and rich industry experience
give the company a technological Advantages ahead of competitors in
the same industry, and the company's products can better meet the
actual market demand. Seelong is brave in innovation. While valuing
its own technological breakthroughs and development, it has
established long-term and in-depth cooperative relationships with
multiple domestic research institutions such as Tsinghua University
and Shandong University. It has passed CE certification, ISO9001
quality system certification, AAA level enterprise certification,
obtained more than ten invention patents, and two software
copyrights. It has provided professional equipment and services to
more than a hundred users both domestically and internationally,
The enterprise has won the trust of domestic and foreign customers
with its cost-effective products and high-quality services, and has
established a long-term win-win strategic partnership.
The company always adheres to the business philosophy of "taking
technological innovation as its mission and quality service as its
purpose", constantly surpassing the advanced level in the same
industry, integrating into the world, measuring and controlling the
future, and creating high-quality products. To provide customers
with products and services with high intelligence, precision,
speed, reliability, and added value.
All employees of Seelong Intelligent Technology (Luoyang) Co., Ltd.
warmly welcome sincere cooperation from domestic and foreign
customers, and work together for the future and common development.
